Pump Applications

Chemical / Petrochemical Processing

Pulp & Paper

Petroleum / Oil & Gas Offshore & Onshore

Petrochemical Pumps

We find solutions for the the most harsh pump applications. Acid slurries; adhesive; amide slurry; ammonium bromide crystals; calcium stearate; carbon black; catalyst; emulsion latex, filter press feed; glycol; methanol resin; solvent; soda ash; carbon slurry; sulphuric acid; titanium dioxide; uranium sludge; zeolite slurry; lime slurry(70%+); titanium dioxide; calcium carbonate; synthetic fuels (40%+ abrasives); clay; oil with sand; heavy salt brines; DE pre-coat; bottom and fly ash; with using the diskpak inside the pump the disk pump.


Petroleum / Oil & Gas Offshore & Onshore

Pulp & Paper

Petroleum / Oil & Gas Offshore & Onshore

Oil Water Separator Pumps

Drilling mud; subsea mud and de-silter pumping; crude oil; multiphase pumping, sand oil slurry pumping; gas-entrained sludge; oil emulsions; tank bottom transfer; oil with sand; waste; hot and heavy oils; and more. disk pump

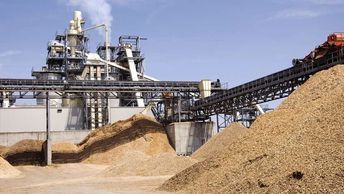

Pulp & Paper

Pulp & Paper

Pulp & Paper

Pump and Paper

The disk pump in Black liquor soap; green liquor dregs; clarifier sludge, paper stock to 18% consistency; pulp to 16% consistency; kaolin clay, filter rejects; talloil soap; air-entrained sludge; black, green, white liquors; Titanium Dioxide - TIO2; and more.

Waste & Water Treatment

Waste & Water Treatment

Waste & Water Treatment

Wastewater Disc Pumps

Flash or rapid mixing; industrial equipment flocculation; carbon make-down; lime slurry or slaked pebble lime; polymer or polyelectrolyte day tanks; water treatment chemicals; Mg(OH)2; phosphates; filter aids; neutralization; equalization; scum mixing; sludge; aeration; anoxic mixing; anaerobic digesters; and more.

Pharmaceuticals

Waste & Water Treatment

Waste & Water Treatment

Shear Sensitive Pumps

With the disk pump delicate Salt crystal slurries are pumped without damage; pill coatings; protein; water, methanol, hexane; polyol; ferric nitrate crystals; toluene; organic solvents; blood plasma; media prep; extraction; filter aid; and more.

Minerals Processing

Waste & Water Treatment

Food & Beverage Processing

Mining Pumps

Mining industry the disk pump for Alumina; gold leach; copper SX pump mixers & settlers; silver, platinum or precious metals recovery; and more.

Food & Beverage Processing

Food & Beverage Processing

Food & Beverage Processing

Food Industry Disc Pumps

Condiments; soups; tomato sauce (with chunks); paste; juice; starch; flavors & fragrances; dextrose; maltose; fructose; crystallizers; fruit juices; re-fried beans; hydrogenation; milk; brewery; infant prep; cooked corn; egg whites; corn syrup; cola syrup; dairy products; molasses; chicken and by-products; poultry waste; animal fat; and more.

CPI & General

Food & Beverage Processing

Other Major Applications

Pumps for Grapes, Fruits, Wine

Inks; pigments; dyes; binders; adhesives; polish; styrene; polymers (numerous); paints; titanium dioxide; varnish; gelatins; emulsions; cellulous; flue gas & desulphurization; tall oil; plaster; foundry prep; acids; cosmetics; health & beauty products, rubber crum; carbonators, gypsum, sulfonating, potash; iron oxide; zinc oxide; animal fats; vegetable oils; mud; fertilizers; latex; cutting fluids; and more.

Other Major Applications

Food & Beverage Processing

Other Major Applications

Slurry Pumps

Environmental dredging & cleanup; steel and metal manufacture; phosphate mining; mine de-watering; ceramic, glass, pump stone applications; nuclear and coal-fired power plant utilities; agriculture; maritime applications; hospitals; filter press feed; filter cake; latex; polymers; sand; gravel; grit; reactor column bottoms; gypsum; hot tar; underflow thickener sludge; blending; solid suspension; slurry mixtures; gas-liquid; storage; batch & continuous; and more.

Special Applications

Tanker & Rail car unloading; coal fines and sediment; lift stations; fumed silica (dry) rail and tanker; fumed silica (slurry and dry power); loading; sugar crystals; crystalline suspensions; and more.

Installations disk pump

Chemical


CCS 2x1.5x8H31/CD4/6.875"

Process Application: Sulfur Oxide (Tar Balls)  Material of Construction: CD4

10 GPM at 200 Ft. TDH

Specific Gravity 1.46

Solids  5% Viscosity 10 cPs


BFM 6x4x14H50/Alloy 20

Process Application: Sulferic Acid/ Methanacrlamide

Materials of Construction: Alloy 20

950 GPM at 110.0 Ft. TDH 10% Solids at 0-15% Air

60cP Viscosity 1.50 Specific Gravity

100 degrees C 4-12 pH


CCS 2x1.5x8 H31/CD4

Process Application: Sulfuric Acid 98% Water 5%

Materials of Construction: CD4

30-40 GPM at 65 Ft. TDH  10cP Viscosity

1.05 Specific  Gravity

150 degrees F


BFM 4x2x14L25 /340

Process Application: CaCl Slurry

250 GPM at 70 Ft. TDH

100-500 Micron Solids at 14%

10cP Viscosity

1.4 Specific Gravity

160 degrees F


BFS 150x100x250H50

Process Application: PU 415 Zeolite

10.0m3/h at 22.0 m TDH  0.1 mm Solids 30%  Viscosity 150 cPs

1.650 Specific Gravity

30 degrees C 11 pH


CCS 2x1.5x8H31/A20

Process Application: Benozacor

Material of Construction Alloy 20

40 GPM at 60 Ft. TDH

500cP Viscosity  1.5 Specific Gravity

115 degrees C


Solids


CCM 4x3x14/2S/WCB/A532/13"

Process Application: Recycled Plastics

Material of Construction WCB/ A532

150 GPM at 14 Ft. TDH

30% Solids (1.50 inch)

1-3000 cP Viscosity

1 Specific Gravity

90 degrees F


VPBFM 150x100x356H50 (6x4x14")

Process Application: Sludge

150 GPM at 22 Ft. TDH

Material of Construction ASTM A532

70% Solids 2.125" size

8000cP Viscosity

2.3 Specific Gravity

80 degrees C


CCS 2x1.5x8H31/340/5.69

Process Application: Blood

Materials of Construction: ATSM A532

80 GPM at 25Ft. TDH

60% Solids at 1/4” Dia.



CCM 6x4x14H50/A532/13/284

Process Application: Feather Floor Sump

Materials of Construction: ASTM A532

120 GPM at 60 Ft. TDH 25% Solids at 2.5” Dia.


CCS 3x2x10H31/A532/9.5

Process Application: Fat

Materials of Construction: ASTM A532

100 GPM at 80 Ft. TDH

10% Solids at 5/8” Dia.


CCM 6x2x14L25/340/12.92

Process Application: Blood Coagulator

Materials of Construction: ASTM A532 60 GPM at 160 Ft. TDH   80% Solids at 1/2 ” Dia.

 Viscosity 9000cPs


Shear Sensitive - Delicates


SPCCS 2x1.5x8x2SSD/ALUM/316/8"

Process Application: Salmon Eggs

Material of Construction: Aluminum

 25 GPM at 8 Ft. TDH .125 (1/4) inch solids (delicate)  1 cP Viscocity  1 Specific Gravity

75 Degrees F


 Water & Wastewater


VSP 3x2x10H31/316S/7.0"

Vertical Sump Pump

Process Application: MDEA Water

Materials of Construction 316SS

44 GPM at 180 Ft. TDH

3.97-27.94cP Viscosity

1.013-1.041 Specific Gravity

41-257 degrees F


BFM 4x2x14/ A532/13.6"

Process Application: Salt Water Slurry

Material of Construction: A532

166 GPM at 92 Ft. TDH

500 Micron Solids

15.40% 2.5 cP Viscosity

1.18 Specific Gravity

240 degrees F


SPCCM 3x2x10 H31/A 20/7.75"

 Process Application: Storm Water with Acid

Materials of Construction: Alloy 20

300 GPM at 183 Ft. TDH

Self Primer

20% Solids at 1.250% Air

1cP Viscocity

.92 Specific Gravity

212 degrees C

3-12pH


Oil


BFMLHD 6x4x14/WCB/600#RF

Process Application: Crude Oil

Materials of Construction: WCB

528 GPM at 280 Ft. TDH

.953-.956 Specific Gravity

55 degrees C


SBM 10x8x20H75/WCB/125HP Submersible

Process Application: Oil-Water Run Off-Rocks-Rags-Waste Sump

Materials of Construction: WCB

1320 GPM at 40 Ft. TDH

100-400 cP Viscosity

68-77 degrees F
